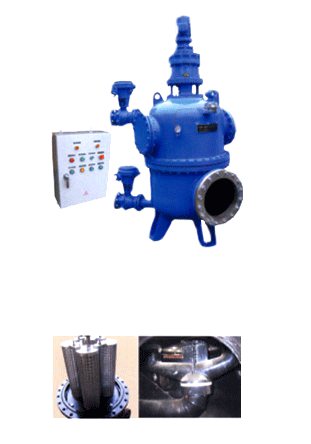

主要應用于電站、鋼鐵供水系統、火電廠供熱系統及各種要求過濾雜質、懸浮物等需要達到高精度的技術供水場合，適合于水質較好、無大量漂浮物的水質自動過濾。
This strainer is designed for filtering impurites and floaters of liquids in power station,iron and steel enterprise and heat and power plant,which need fine filtering and for quality water containing less floaters.
主要特點
它是一種具備自動過濾、自動反沖洗清污、自動排污的濾水器。由于內部有數個，甚至數十個過濾單元同時過濾，而排污單元只是其中的一個，因而具有排污耗水量少，反沖力度大，過濾精度高、檢修方便的特點。
可根據需要設計為濾網快換型過濾筒需要換或檢修時，可通過設在濾水器側上部的檢修手孔直接將每一個濾筒手動取出清洗。
由于本濾水器所具有的特殊結構，因此，它可以設計制作成適合于各種不同精度要求的場合。最高過濾精度達到0.02mm。
MAIN FEATURES
It features of automatic filtering,automatic counter-flushing and automatic discharge.Since several or severaltens of filter elements operate at the same time and only one discharge element works,water consumption discharged is less and counter-flushing is bigger.It is also characterized by fine filtration and easy service.
When cartridges need service,they can be taken out manually from service hole located at upper part of lateral of strainer for rinsing.
The strainer has special structure.Therefore,it can be designed according to different requirements of fineness.The highest fineness is 0.02mm.
自動反沖洗功能
正常過濾狀態時，電動減速機不啟動，排污閥關閉。
當達到清污狀態時，排污閥打開，減速機啟動并帶動排污叉管轉動，使被沖洗的過濾單元與排污口相連通，形成排污通路，附著在過濾網上的污物雜質借助過濾后的清潔水自動反沖，使沖洗下來的污物雜質隨著開啟的排污閥經排污管口流出。
AUTOMATIC COUNTER-FLUSHING
When strainer operates normally,motor reducer does not work and pollutant discharge valve is closed. When pollutant removing is needed,discharge valve is open and reducer starts to drive discharge fork so that filter elements flushed is connected with discharge port,forming discharge channel. Pollutant and impurities adhering to screen are discharged through opened discharge valve and discharge pipe by means of clean water filtered.
故障保護功能
減速機出現故障，排污閥過力矩，差壓過高時均沒有安全保護措施和報警及指示。
PROTECTION
In case of reducer failure and over-torque of discharge valve and excessive diferential pressure,protection device,alarm and pilot lamp will come into action.
For other data,please see bolow table.
主要技術參數
公稱壓力：0.1MPa；1.6MPa；2.5MPa
工作壓力：0.25-1.0 Mpa；0.25-1.6 Mpa；0.25-2.5 Mpa
壓力損失：0.01-0.03 Mpa
工作電源：380V.AC50Hz
差壓設定范圍：0.02-0.16 Mpa
自動沖洗時間：5min或根據工況要求
定時設定范圍：0-72小時
過濾精度：0.02-6mm
其余參數見下表
MAIN TECHNICAL DATA
Nominal pressure： 0.1MPa；1.6MPa；2.5MPa
Operation pressure： 0.25-1.0 Mpa；0.25-1.6 Mpa；0.25-2.5 Mpa
Pressure loss： 0.01-0.03 Mpa
Operating power：380V.AC50Hz
Differential pressure scope：0.02-0.16 Mpa
Automatic flushing time：5min or adjust according to requirements.
Time setting：0.72h
Filter fineness：0.02-6mm
For other data,see bolow table.
